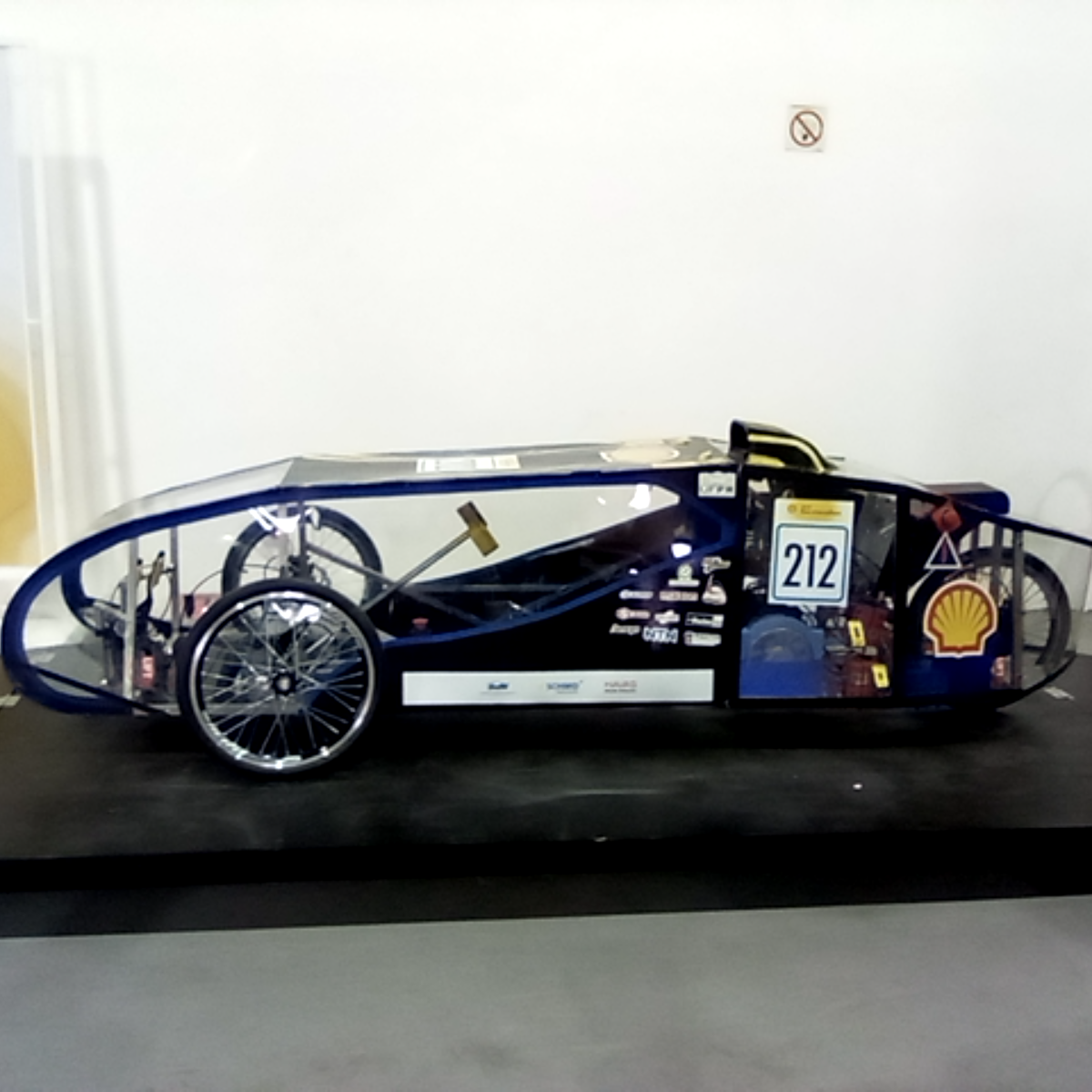

212
BR0031001 Eco Octano UFPR Hidrogênio
UFPR
Technical Inspections
Before they get on track, Prototype vehicles need to pass a series of 10 technical inspections. For some, the only goal is getting through this test. Many never even make it that far.
0/10
Not yet started
Not yet started
Not yet started
1. Inspection Queue Entry
0 / 9
Bound/Printed documentation
(67 c)
Charging Protection (fire blanket, Lipo bag)
(24 l)
Charger
(57 d iii)
SHELL logo front / both sides
(4 a-c)
Race number front / both sides
(4 a-c)
Partner sticker both sides
(4 a-c)
Lift here arrow stickers
(26 f)
Opening mechanism stickers
(30 c)
Other stickers < 400 cm²
(4 d)
Not yet started
2. Vehicle Weight
0 / 2
Vehicle weight
Vehicle weight < 140 kg
(39 g)
Not yet started
3. Driver & Safety Gear
0 / 12
Appropriate motorsports helmet - Primary Driver
(21 a-f)
Three-quarter helmet - Primary Driver
(21 b)
Helmet label readable - Primary Driver
(21 c)
Helmet has no cracks/indentations - Primary Driver
(21 c)
Visor is clear and has no cracks - Primary Driver
(21 d)
Racing suit (s) / Gloves - Primary Driver
(21 d)
Single piece fire retardant racing suit - Primary Driver
(22 a)
Shoes; socks & balacava/FRC - Primary Driver
(22 b, d)
Driver weight (> 50kg) - Primary Driver
(20 a)
Ballast required?
Ballast based on lightest driver
(20 c)
Ballast of suitable type, proper location, sealed
(20 b)
Not yet started
4. Brakes
0 / 11
Brake documentation
(67 c ii)
2 Hydraulic brake system 1 front & 1 rear
(43 a)
1 single Hydraulic circuit per axle
(43 a)
Foot operated front brake by single pedal
(43 a)
Rear brake by single lever or pedal
(43 a)
Brake pedal 1,000 mm², min width 30 mm
(43 a v)
Brake rotors point in direction of wheel rotation
(43 a)
No acting on tyres
(43 a)
All wheels have brakes
(43 a)
Ergonomy
(43 a)
Effectiveness Ramp Test - Dynamic
(43 b)
Not yet started
5. Driver Safety
0 / 18
Safety belt must be designed for motorsports use
(29 g)
Mounting points are clearly accessible for inspection
(29 e)
Safety Belts ≥ 5 mounting points
(29 a-b)
Safety Belts - chassis fixing
(29 d)
Must have 5 independent belts attached to structure
(29 a)
Crotch strap under body
(29 b)
Top strap at 10° angle
(29 b)
Safety belt must be in straight line between mounting point and shoulder
(29 f)
Length adjustor high enough for adjustement
(29 b)
Safety belt has a tight fit (no slack)
(29 c)
No modifications of safety belt
(29 h)
Safety belt strength verified
(29 d)
Roll bar resist 70 kg all directions
(26 d)
Roll bar 50 mm > driver's head - Primary Driver
(26 b)
Roll bar width > shoulders - Primary Driver
(26 c)
Front vis 180° & Tint - driver must be seen - Primary Driver
(28 a)
Rear visibility - see cheat sheet - Primary Driver
(28 b)
Driver exit < 10 seconds - Primary Driver
(30 a-d)
Not yet started
6. Vehicle Dimensions
0 / 6
Height < 1000 mm
(39 a)
Width < 1300 mm
(39 e)
Length < 3500 mm
(39 f)
Track width > 500 mm
(39 b)
Wheelbase > 1000 mm
(39 d)
Maxi height 1.25 X track width
(39 c)
Not yet started
7. Mechanical Vehicle Design
0 / 27
Fully closed body
(25 j, g)
Quality of body driver collision protection
(26 a-d)
Crumple space-protect from front/side impact
(25 a ii)
Front Crumple Zone ≥ 100 mm
(25 a ii)
Solid floor & frame
(25 i)
No external appendages or sharp edges
(25 c)
Windows material (polycarbonate/lexan)
(25 e)
Body panels do not change shape in wind
(25 b, d)
Internal/ext'l opening mech effective/intuitive
(30 c)
Method of opening accurately marked with sticker
(30 c)
No adhesive tape to close driver compartment from outside
(30 d)
Bulkhead rigid & fire resistant
(27 b-d)
Bulkhead isolates energy/driver compartment
(27 a)
Chain/belt guard (all rotating equipment)
(34 g)
Running wheels (Pr:3/4, UC:4)
(25 a) i , iii)
Rims compatible with the dimensions of the tyre
(41 a-b)
Wheels isolated from driver, chassis, or body
(41 c)
Nothing touching wheels (e.g. batt, wires, etc...)
(41 e)
Steering is efficient and has no play
(32 b-c)
If electric steering, demonstrate default safe state
(32 d)
Intuitive steering control
(32b)
Wheel compliance
(48 c)
Tyres do not exceed manufacturer's recommended age
(49 d)
Tyre valves are accessible
(49 f)
Electrical automotive horn
(31 a)
Horn sound level > 85 dBa @ 4 m
(31 b-c)
Driver not in head-first position
(33)
Not yet started
8. Electrical Vehicle Design
0 / 32
Correct vehicle electrical schematic
(67 c)
Charger built for battery
(57 d iii)
Charging Protection (fire blanket, Lipo bag)
(24 h)
Capacity < 1000 Wh
(57 d iv)
Max 60 V Peak
(57 a)
Only one Battery, 2 terminals, single physical package
(57 b, i)
Solid metal containment tray OR Lipo bag
(57 d vi)
Batt mount firm, behind b/head, not under seat
(57 c)
Main fuse < 300 mm from +ve terminal ADD fuse size
(57 e)
Super Cap voltage > system V
(57 a)
Fuse on +ve of SC, <300mm, size OK
(57 e)
Super Cap External connectors
(63 c)
Super Cap Electrical Isolation from body/frame
(57 f)
Fuse on +ve of FC, <300mm, size < surface area
(65 l ii)
Accessory circuit isolated from propulsion
(65 k, m)
JM Counting Correctly
(56 c)
Starter Battery External connectors
(65 k)
Elec system has proper fuse protection
(57 e)
Only allowed electrical devices powered by accessory battery
(57 h)
Electrical enclosures - transparent
(57 j)
Wiring organized and safe
(27a, 57 k)
Electrical wiring connections visible/no splices
(57 k)
JM Installation in engine compartment
(56 c)
JM visible and accessible from outside
(56 b)
JM Correct circuit location
(56 c)
JM Counting Correctly
(56 c)
Super Cap JM Installation in engine compartment
(56 b, 63 d)
Super Cap JM Correct circuit location
(56 c iii, 63 d)
Internal Estop Switch
(37 f i)
External Estop mounting location
(37 f ii)
Latching External Estop push button (no push/pull levers)
(37 g)
Blue triangle sticker
(37 f iii)
Not yet started
9. Energy Verification
0 / 19
Documentation (schematic, H2 flow, fuel cell, regulator)
(67 c, 65 a i)
No external starter battery
(65 k iii)
Hydrogen cylinder firmly installed
(65 b iv)
Regulator installed correctly
(65 a iv 1)
Pipe H2 suitable, S.Steel (1.0 bar), PTFE (<1.0 bar)
(65 e)
Connectors H2 OK (comp type, no Teflon)
(65 e iv)
Normally closed solenoid valve
(37 f i)
Pressure relief valve installed and set correctly
(65 a iv 4)
Pressure relief valve vents outside vehicle
(65 a iv 4)
Purge pipe vents outside or not used
(65 f)
Correct system design
(65 a iv)
2 ventilation holes 5 cm²
(65 c)
Hydrogen sensor at highest point
(65 d)
Leak Check OK
(65 e)
Flowmeter installed and functioning
(65 a v, g iii)
Supercap Joulemeter reading voltage & Energy
(65 i iii)
Emergency shutdown function (H2 Valve & Propulsion)
(37 f iii)
Efficiency of Estop (3 methods, valve/MC)
(37 f iii)
Dead man's switch
(37 i)
Not yet started
10. Final Check
0 / 4
Technical Sticker received
Safety Sticker received
Pit Crew vests received
Transponder received
