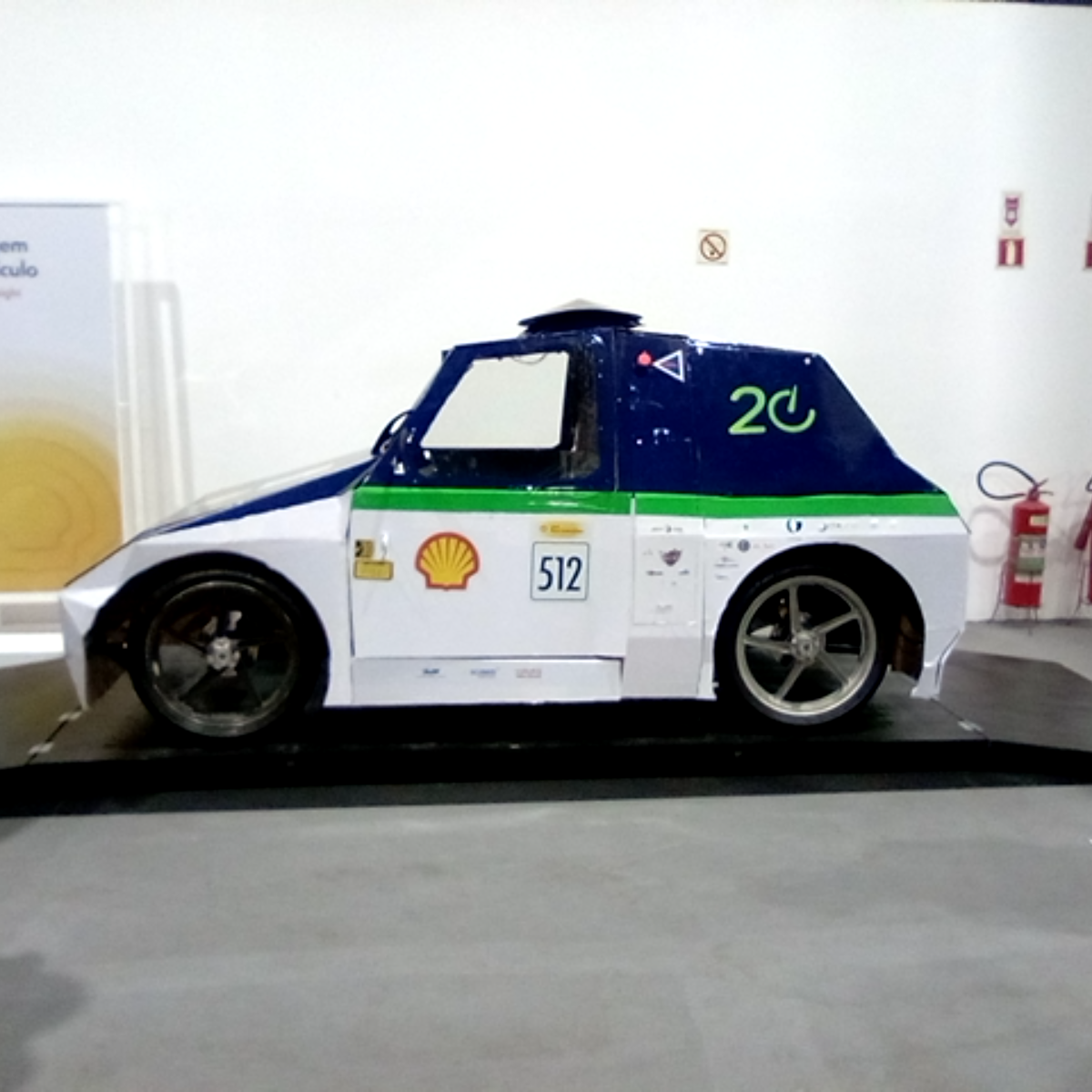

BR0026001 Milhagem UFMG ICE
UFMG
Urban Concept
UC
Internal Combustion Engine
ICE
Gasoline
Results
Attempt 1
Invalid
Invalid
Attempt 2
54.5
128.1
km/l
mpg us
Best attempt
Technical Inspections
Before they get on track, Urban Concept vehicles need to pass a series of 10 technical inspections. For some, the only goal is getting through this test. Many never even make it that far.
10/10
Complete
Complete
Passed
1. Inspection Queue Entry
9 / 9
Pre-inspection self-checks completed
Bound/Printed documentation
(67 c)
Telemetry equipment installed
(67 c)
SHELL logo front / both sides
(4 a-c)
Race number front / both sides
(4 a-c)
Partner sticker both sides
(4 a-c)
Lift here arrow stickers
(26 f)
Opening mechanism stickers
(30 c)
Other stickers < 400 cm²
(4 d)
Passed
2. Vehicle Weight
2 / 2
Vehicle weight
Vehicle weight < 225 kg
(45 h)
Passed
3. Driver & Safety Gear
19 / 19
Appropriate motorsports helmet - Primary Driver
(21 a-f)
Helmet label readable - Primary Driver
(21 c)
Helmet has no cracks/indentations - Primary Driver
(21 c)
Visor is clear and has no cracks - Primary Driver
(21 d)
Racing suit (s) / Gloves - Primary Driver
(21 d)
Single piece fire retardant racing suit - Primary Driver
(22 a)
Shoes; socks & balacava/FRC - Primary Driver
(22 b, d)
Driver weight (> 70kg) - Primary Driver
(20 a)
Appropriate motorsports helmet - Reserve Driver
(21 a-f)
Helmet label readable - Reserve Driver
(21 c)
Helmet has no cracks/indentations - Reserve Driver
(21 c)
Visor is clear and has no cracks - Reserve Driver
(21 d)
Racing suit (s) / Gloves - Reserve Driver
(21 d)
Single piece fire retardant racing suit - Reserve Driver
(22 a)
Shoes; socks & balacava/FRC - Reserve Driver
(22 b, d)
Driver weight (> 70kg) - Reserve Driver
(20 a)
Ballast required?
Ballast based on lightest driver
(20 c)
Ballast of suitable type, proper location, sealed
(20 b)
Passed
4. Brakes
11 / 11
Brake documentation
(67 c ii)
Brake rotors point in direction of wheel rotation
(43 a)
Ergonomy (both hands on steering mech.)
(32 c)
Effectiveness Ramp Test - Dynamic
(51 e)
4 disc hydraulic brake
(51 a)
X design or front / rear
(51 b)
Brake pedal 2,500 mm²
(51 a)
Parking brake must keep vehicle stationary on ramp
(51 d)
Disc thickness > 3 mm
(51 a)
One dual master cylinder or 2 master cyls
(51 c)
Commercial brake system, not bicycle
(51 a)
Passed
5. Driver Safety
24 / 24
Safety belt must be designed for motorsports use
(29 g)
Mounting points are clearly accessible for inspection
(29 e)
Safety Belts = 5 mounting points
(29 a-b)
Safety Belts - chassis fixing
(29 d)
Must have 5 independent belts attached to structure
(29 a)
Crotch strap under body
(29 b)
Top strap at angle
(29 b)
Safety belt must be in straight line between mounting point and shoulder
(29 f)
Length adjustor high enough for adjustement
(29 b)
Safety belt has a tight fit (no slack)
(29 c)
No modifications of safety belt
(29 h)
Safety belt strength verified
(29 d)
Quality of body driver collision protection
(26 a)
Roll bar resist 70 kg all directions
(26 d)
Roll bar 50 mm > driver's head - Primary Driver
(26 b)
Roll bar width > shoulders - Primary Driver
(26 c)
Roll bar 50 mm > driver's head - Reserve Driver
(26 b)
Roll bar width > shoulders - Reserve Driver
(26 c)
Front vis 180° & Tint - driver must be seen - Primary Driver
(28 a)
Rear visibility - see cheat sheet - Primary Driver
(28 b)
Front vis 180° & Tint - driver must be seen - Reserve Driver
(28 a)
Rear visibility - see cheat sheet - Reserve Driver
(28 b)
Driver exit < 10 seconds - Primary Driver
(30 a-d)
Driver exit < 10 seconds - Reserve Driver
(30 a-d)
Passed
6. Vehicle Dimensions
11 / 11
Height 1000 - 1300 mm
(45 a)
Width 1200 - 1300 mm
(45 b)
Length 2200 - 3500 mm
(45 c)
Track width > 1000 mm (front)
(45 d)
Track width > 800 mm (rear)
(45 d)
Wheelbase > 1200 mm
(45 e)
Ground clearance > 100mm
(45 g)
Drivers compartment > 880 mm
(45 f)
Width at drivers shoulder > 700 mm - Primary Driver
(45 f)
Width at drivers shoulder > 700 mm - Reserve Driver
(45 f)
Two Doors - Min 500 x 800 mm
(46 d)
Passed
7. Mechanical Vehicle Design
37 / 37
Fully closed body
(25 j, g)
Quality of body driver collision protection
(26 a-d)
Crumple space-protect from front/side impact
(25 a ii)
Solid floor & frame
(25 i)
No external appendages or sharp edges
(25 c)
Windscreen & wiper
(52, 28 a)
Window tint - driver must be seen
(28 a)
Body panels do not change shape in wind
(25 b, d)
Wheel covers integral with body
(46 b)
Internal/ext'l opening mech effective/intuitive
(30 c)
Method of opening accurately marked with sticker
(30 c)
No adhesive tape to close driver compartment from outside
(30 d)
Door solidly attached
(46 e)
Bulkhead rigid & fire resistant
(27 b-d)
Bulkhead isolates energy/driver compartment
(27 a)
Chain/belt guard (all rotating equipment)
(34 g)
Running wheels (Pr:3/4, UC:4)
(25 a) i , iii)
Wheels isolated from driver, chassis, or body
(41 c)
Steering is efficient and has no play
(32 b-c)
If electric steering, demonstrate default safe state
(32 d)
Intuitive steering control
(32b)
Rims 14 to 18 inch
(48 a)
Tyre width > 80mm
(49 c)
Wheel compliance
(48 c)
Tyres do not exceed manufacturer's recommended age
(49 d)
Tyre valves are accessible
(49 f)
Min tread 1.0 mm
(49 b)
Luggage compartment (and luggage)
(46 h)
Towing hook or ring
(46 j)
Front turn indicators
(50 b)
2 front symmetrical headlights
(50 a, f)
Rear turn indicators
(50 c)
Red rear brake light
(50 d)
Red rear running lights
(50 e)
Hazard Lights
(50 h)
Electrical automotive horn
(31 a)
Horn sound level > 85 dBa @ 4 m
(31 b-c)
Passed
8. Electrical Vehicle Design
18 / 18
Correct vehicle electrical schematic
(67 c)
Max 60 V Peak
(57 a)
Only one Battery, 2 terminals, single physical package
(57 b, i)
Batt mount firm, behind b/head, not under seat
(57 c)
Main fuse < 300 mm from +ve terminal ADD fuse size
(57 e)
Elec system has proper fuse protection
(57 e)
Only allowed electrical devices powered by accessory battery
(57 h)
Electrical enclosures - transparent
(57 j)
Wiring organized and safe
(27a, 57 k)
Electrical wiring connections visible/no splices
(57 k)
JM Installation in engine compartment
(56 c)
JM visible and accessible from outside
(56 b)
JM Correct circuit location
(56 c)
JM Counting Correctly
(56 c)
Internal Estop Switch
(37 f i)
External Estop mounting location
(37 f ii)
Latching External Estop push button (no push/pull levers)
(37 g)
Blue triangle sticker
(37 f iii)
Passed
9. Energy Verification
33 / 33
1 Shell fuel tank 30/100/250/350 cc
(61 a)
Safety valve location (between reg and compressed air bottle)
(60 d i)
Safety valve tested at 5 bars Max (ALL inspectors MUST wear goggles!!)
(60 b i)
Translucent and rigid hoses
(61 g)
Fuel tank vertical position
(61 c)
Fuel tank easy to refill (with burette)
(61 c)
Electric starter only
(64 a)
Starter cannot propel vehicle
(64 b)
Engine idle without vehicle moving
(34 d)
JM Counting Correctly
(56 c)
Flowmeter mounted in the vertical position
(71)
Fuel lines are safely routed
(71)
No loops are present in fuel lines
(71)
Air removal completed and validated
No bubbles present in fuel line
No leaks in fuel line
Exhaust system evacuates outside
(35 a, b)
Exhaust Solid/no fatigue/leak, OK for high temp
(35 c, d)
4 stroke engine
(59)
Clutch effective
(34)
Interlock for manual clutch
(34 e)
Nothing in the fuel line (no filters, etc)
(62 c)
Fuel injection only
(62 e)
Mechanical pump, or electrical meeting requirements
(60 c)
If engine temp regulated, must be pressurized pure water only
(60 e)
Cooling system designed safely
(60 d)
No auxiliary energy sources
(60 c)
Pneumatic energy for fuel injection only
(60 a)
Air intake free of obstruction/ foreign objects
(62 f)
No blow-by gas recycling, is collected in container
(62 f)
Emergency shutdown function
(37)
Efficiency of emergency shutdown
(37 a-c)
Dead man's switch
(37 h)
Passed
10. Final Check
4 / 4
Technical Sticker received
Safety Sticker received
Pit Crew vests received
Transponder received
| Event | Vehicle category | Energy class | Rank | Result |
|---|---|---|---|---|
| Brazil 2024 | Urban Concept UC | Internal Combustion Engine ICE (Gasoline) | - | Did not pass technical inspection |
