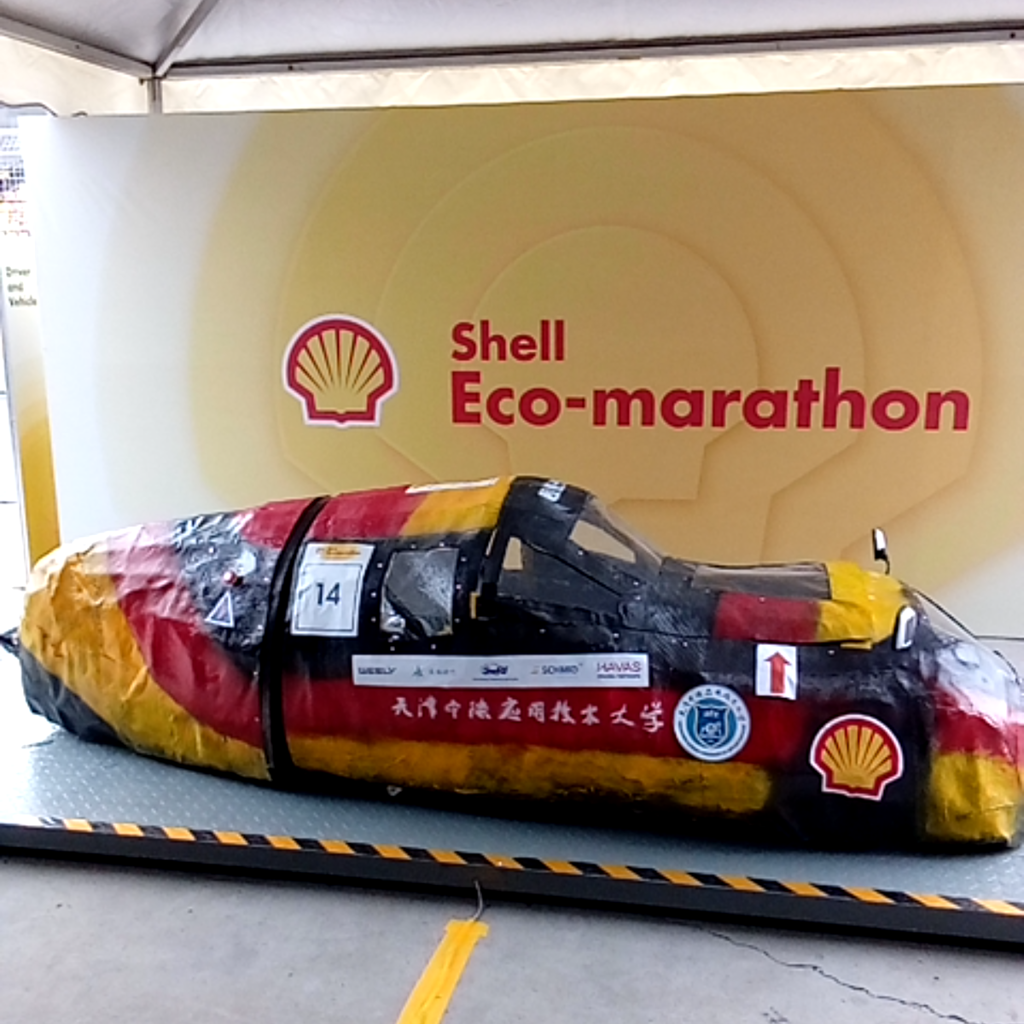

CN0048001 Eternal Topspeed / ??????
Tianjin Sino German University of Applied Sciences
Prototype
P
Internal Combustion Engine
ICE
Gasoline
Technical Inspections
Before they get on track, Prototype vehicles need to pass a series of 11 technical inspections. For some, the only goal is getting through this test. Many never even make it that far.
11/11
Complete
Complete
Passed
1. Inspection Queue Entry
1 / 1
Bound/Printed documentation
(58 c)
Passed
2. Driver's Control
15 / 15
Appropriate motorsports helmet (s) - Primary Driver
(21 a)
Helmet label readable - Primary Driver
(21 a)
Helmet has no cracks/indentations - Primary Driver
(21 a)
Visor is clear and has no cracks - Primary Driver
(21 b)
Racing suit (s) / Gloves - Primary Driver
(21 a, c)
Single piece fire retardant racing suit - Primary Driver
(22 a)
Shoes; socks & balacava/FRC - Primary Driver
(22 b, d)
Driver weight (> 50kg) - Primary Driver
(20 a)
Ballast required?
Ballast based on lightest driver
(20 c)
Ballast of suitable type, proper location, sealed
(20 b)
SHELL logo front / both sides
(4 a-g)
Race number front / both sides
(4 a-g)
Partner sticker both sides
(4 a-g)
Other stickers < 400 cm²
(4 a-g)
Passed
3. Vehicle Weight
2 / 2
Vehicle weight
Vehicle weight <140 kg
(39 g)
Passed
4. Brakes
9 / 9
2 Hydraulic brake system 1 front & 1 rear
(43 a)
1 single Hydraulic circuit per axle
(43 a)
Foot operated front brake by single pedal
(43 a)
Rear brake by single lever or pedal
(43 a)
Brake rotors point in direction of wheel rotation
(43 a)
No acting on tyres
(43 a)
All wheels have brakes
(43 a)
Ergonomy (both hands on steering mech.)
(43 a)
Effectiveness Ramp Test
(43 b)
Passed
5. Vehicle Dimensions
6 / 6
Wheelbase > 1000 mm
(39 d)
Track width > 500 mm
(39 b)
Maxi height 1.25 X track width
(39 c)
Height < 1000 mm
(39 a)
Length < 3500 mm
(39 f)
Width < 1300 mm
(39 e)
Passed
6. Seat Belts, Roll bar & Exit
12 / 12
Safety Belts = 5 mounting points
(29 a-b)
Safety Belts - chassis fixing
(29 d)
Crotch strap under body
(29 b)
Top strap at 10° angle
(29 b)
Length adjustor high enough for adjustement
(29 b)
Safety belt has a tight fit (no slack)
(29 c)
Safety belt strenght verified
(29 d)
Crumple space-protect from front/side impact
(25 a ii)
Roll bar resist 70 kg all directions
(26 d)
Roll bar 50 mm > driver's head - Primary Driver
(26 b)
Roll bar width > shoulders - Primary Driver
(26 c)
Driver exit < 10 seconds - Primary Driver
(30 a-d)
Passed
7. Visibility
6 / 6
Front vis 180° & Tint - driver must be seen - Primary Driver
(28 a)
Rear visibility + Mirrors > 25 cm² - Primary Driver
(28 b)
Windows material (polycarbonate/lexan)
(25 e)
Electrical automotive horn
(31 a)
Horn sound level > 85 dBa @ 4 m
(31 b-c)
Driver not in head-first position
(33)
Passed
8. Mechanical Vehicle Design
19 / 19
Fully closed body
(25 j, g)
Quality of body driver collision protection
(26 a-d)
Front Crumple Zone = 100 mm
(25 a ii)
Solid floor & frame
(25 i)
No external appendages or sharp edges
(25 c)
Body panels do not change shape in wind
(25 b, d)
Internal/ext'l opening mech effective/intuitive
(30 c)
Method of opening marked with red arrow
(30 c)
No adhesive tape to seal driver compartment
(30 d)
Bulkhead rigid & fire resistant
(27 b-d)
Bulkhead isolates energy/driver compartment
(27 a)
Chain/belt guard
(34 g)
Running wheels (Pr:3/4, UC:4)
(25 a iii)
Rims compatible with the dimensions of the tyre
(41 a-b)
Wheels isolated from driver, chassis, or body
(41 c)
Nothing touching wheels (e.g. batt cables..)
(41 e)
Steering efficiency no play
(42 d)
If indirect electric steering, must have manual override
(42 c)
If electronic steering no joystick
(42 c)
Passed
9. Electrical Vehicle Design
17 / 17
Correct vehicle electrical schematic
(58 c)
Max 48 V nominal (60 V Peak)
(57 a)
Only one Battery, 2 terminals, single physical package
(57 b, i)
Batt mount firm, behind b/head, not under seat
(57 c)
Main fuse < 300 mm from +ve terminal ADD fuse size
(57 e)
Elec system has proper fuse protection
(57 e)
Only allowed electrical devices powered by accessory battery
(57 h)
Electrical enclosures - transparent
(57 j)
Electrical wiring connections visible/no splices
(57 k)
JM Installation in engine compartment
(56 c)
JM visible and accessible from outside
(56 b)
JM Correct circuit location
(56 c)
JM Counting Correctly
(56 c)
Internal Estop Switch
(37 f) i)
External Estop mounting location
(37 f (ii))
Latching External Estop push button (no push/pull levers)
(37 g)
Blue triangle sticker
(37 f (iii))
Passed
10. Energy Verification
29 / 29
1 Shell fuel tank 30/100/250 cc
(61 a)
Safety valve location (between reg and tank)
(60 b i)
Safety valve tested at 5 bars Max
(60 b i)
Translucent and rigid hoses
(61 g)
Fuel tank vertical position
(61 c)
Fuel tank easy to refill (with burette)
(61 c)
Electric Starter Only for ICE
(64 a)
Starter red light is visible
(64 c)
Starter red light works properly
(64 c)
Starter cannot propel vehicle
(64 b)
Emergency shutdown Function
Efficiency of emergency shutdown
(37 a-c)
Internal/External Estop Switch
(37 f)
Latching push button (no push/pull levers)
(37 g)
Dead man's switch
(37 h)
Blue triangle sticker
(37 f (iii))
Exhaust system evacuates outside
(35 a, b)
Exhaust Solid/no fatigue/leak, OK for high temp
(35 c, d)
4 stroke engine
(59)
Clutch effective
(34)
Interlock for manual clutch
(34 e)
Nothing in the fuel line (no filters, etc)
(62 c)
Fuel injection only
(62 e)
No electrical fuel pump
(60 a)
If liquid cooling system, must be unpressurized (pure water only)
(60 e)
No auxiliary energy sources
(60 c)
Pneumatic energy for fuel injection only
(60 a)
Air intake free of obstruction/ foreign objects
(62 f)
No blow-by gas recycling
(62 f)
Passed
11. Final Check
4 / 4
Technical Sticker received
Safety Sticker received
Pit Crew vests received
Transponder received
